The Smart Air Station SAS-101 devices are equipment specifically designed for drone platform which can provide real-time environment data, GPS / Baidu navigation data, EMG health data and so on, and transmitted the data to data server or mobile devices through multiple communication means, such as Wi-Fi, Blue Tooth (BLE), LoRaWAN, and NFC communication protocols.

The Smart Home Stations devices fit greatly for personal and family usage and also fit for business situation in some cases. The devices are powered with 220/110V AC to 3.3V DC adapter and for some device as SHS-101, additional 5.0V DC power is needed for specific sensors.

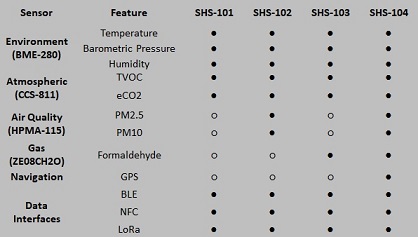

Different models have different features. The features and functionalities of each model are listed as below:

Environment Data Measurement:

1. Air Quality – CCS811:

Your Smart Home Station device is equipped with CCS811 Air Quality module as a digital gas sensor solution that senses a wide range of Total Volatile Organic Compounds (TVOCs), including equivalent carbon dioxide (eCO2) and metal oxide (MOX) levels. VOCs are often categorized as pollutants and/or sensory irritants and can come from a variety of sources like construction materials (paint, carpet, etc.), machines (copiers, processors, etc.) and even people (breathing, smoking, etc.). This functionality with SHS-101 is intended for indoor air quality monitoring in personal devices such as watches and phones.

The SHS-101 onboard CCS811 module supports multiple measurement modes that have been optimized for low-power consumption during an active sensor measurement and idle mode extending battery life in portable applications.

Specification:

Module: ScioSense CCS811B-JOPD LGA10 Ultra-Low Power Digital Gas Sensor for Indoor Air Quality

Total Volatile Organic Compound (TVOC) Range: 0 to 29,206 ppb (parts per billion)

CO2 (eCO2) Sensing Range: 400 ppm (parts per million) to 32,768 ppm

Operating Modes: 5

2. Atmospheric – BME280:

The Smart Home Station device is equipped with BME280 Atmospheric Sensor, an environmental sensor with temperature, barometric pressure and humidity. This sensor is great for all sorts of weather/environmental sensing. The BME280 is the next-generation of sensors from Bosch, and is the upgrade to the popular BMP085/BMP180/BMP183 - with a low altitude noise of 0.25m and the same fast conversion time.

Specification:

Module: Bosch BME280 Humidity + Barometric Pressure + Temperature Sensor

Temperature Range: –40 °C ~ +85 °C; Accuracy: ±1.0°C

Humidity Range: 0 - 100% RH; Accuracy: ±3% from 20-80%

Pressure Range: 30,000Pa to 110,000Pa; Relative Accuracy: 12Pa, Absolute Accuracy: 100Pa

Altitude Range: 0 to 30,000 ft (9.2 km); Relative Accuracy: 3.3 ft (1 m) at sea level, 6.6 (2 m) at 30,000 ft

3. Particulate Matters (PM2.5/PM10) – HPMA115S0:

Your Smart Home Station device SHS-101 has an on-board Honeywell HPM Series Particulate Matter Sensor HPMA115 which is a laser-based sensor detecting and counting particles using light scattering. A laser light source illuminates a particle as it is pulled through the detection chamber. As particles pass through the laser beam, the light reflects off the particles and is recorded on the photo or light detector. The light is then analyzed and converted to an electrical signal to calculate particle concentration.

Specification:

Module: Honeywell HPMA115S0-XXX/001/HAK Standard Particulate Matter Sensor

Operating Principle: Laser Scattering

Detection: PM2.5, PM10

Concentration Range: 0 μg/m3 to 1,000 μg/m3

Accuracy (at 25°C ±5°C): PM2.5: ±15 μg/m3 (0 μg/m3 to 100 μg/m3), PM2.5: ±15 % (100 μg/m3 to 1000 μg/m3)

Response Time: < 6s

Storage Temperature: -30°C to 65°C [-22°F to 149°F]

Humidity (operating and storage): 0 %RH to 95 %RH non-condensing

Laser Class: Laser Class 1: IEC/EN 60825-1: 650 nm

4. GPS (Global Positioning System) – NEO-6MV2:

The on-board NEO-6MV2 is a GPS (Global Positioning System) module and is used for navigation. The module simply checks its location on earth and provides output data which is longitude and latitude of its position. It is from a family of stand-alone GPS receivers featuring the high performance u-blox 6 positioning engine. The compact architecture, power and memory options make NEO-6 modules excellent navigation performance even in the most challenging environments.

Specification:

Module: u-blox6 NEO-6MV2 GPS Modules

Receiver Type: 50 Channels，GPS L1 frequency, C/A Code

Time-To-First-Fix: Cold Start (Autonomous)：32 s; Warm Start (Autonomous): 32s

Sensitivity: Tracking & Navigation: -160 dBm; Reacquisition: -160 dBm

Horizontal Position Accuracy: Autonomous: 2.5 m; SBAS: 2.0 m

Velocity Accuracy: 0.1 m/s

Heading Accuracy: 0.5 degrees

Operational Limits: Dynamics: ≤ 4 g; Altitude: 50,000 m; Velocity: 500 m/s

Environment Data Measurement:

1. Air Quality – CCS811:

Your Smart Home Station device is equipped with CCS811 Air Quality module as a digital gas sensor solution that senses a wide range of Total Volatile Organic Compounds (TVOCs), including equivalent carbon dioxide (eCO2) and metal oxide (MOX) levels. VOCs are often categorized as pollutants and/or sensory irritants and can come from a variety of sources like construction materials (paint, carpet, etc.), machines (copiers, processors, etc.) and even people (breathing, smoking, etc.). This functionality with SHS-101 is intended for indoor air quality monitoring in personal devices such as watches and phones.

The SHS-101 onboard CCS811 module supports multiple measurement modes that have been optimized for low-power consumption during an active sensor measurement and idle mode extending battery life in portable applications.

Specification:

Module: ScioSense CCS811B-JOPD LGA10 Ultra-Low Power Digital Gas Sensor for Indoor Air Quality

Total Volatile Organic Compound (TVOC) Range: 0 to 29,206 ppb (parts per billion)

CO2 (eCO2) Sensing Range: 400 ppm (parts per million) to 32,768 ppm

Operating Modes: 5

2. Atmospheric – BME280:

The Smart Home Station device is equipped with BME280 Atmospheric Sensor, an environmental sensor with temperature, barometric pressure and humidity. This sensor is great for all sorts of weather/environmental sensing. The BME280 is the next-generation of sensors from Bosch, and is the upgrade to the popular BMP085/BMP180/BMP183 - with a low altitude noise of 0.25m and the same fast conversion time.

Specification:

Module: Bosch BME280 Humidity + Barometric Pressure + Temperature Sensor

Temperature Range: –40 °C ~ +85 °C; Accuracy: ±1.0°C

Humidity Range: 0 - 100% RH; Accuracy: ±3% from 20-80%

Pressure Range: 30,000Pa to 110,000Pa; Relative Accuracy: 12Pa, Absolute Accuracy: 100Pa

Altitude Range: 0 to 30,000 ft (9.2 km); Relative Accuracy: 3.3 ft (1 m) at sea level, 6.6 (2 m) at 30,000 ft

3. Particulate Matters (PM2.5/PM10) – HPMA115S0:

Your Smart Home Station device SHS-101 has an on-board Honeywell HPM Series Particulate Matter Sensor HPMA115 which is a laser-based sensor detecting and counting particles using light scattering. A laser light source illuminates a particle as it is pulled through the detection chamber. As particles pass through the laser beam, the light reflects off the particles and is recorded on the photo or light detector. The light is then analyzed and converted to an electrical signal to calculate particle concentration.

Specification:

Module: Honeywell HPMA115S0-XXX/001/HAK Standard Particulate Matter Sensor

Operating Principle: Laser Scattering

Detection: PM2.5, PM10

Concentration Range: 0 μg/m3 to 1,000 μg/m3

Accuracy (at 25°C ±5°C): PM2.5: ±15 μg/m3 (0 μg/m3 to 100 μg/m3), PM2.5: ±15 % (100 μg/m3 to 1000 μg/m3)

Response Time: < 6s

Storage Temperature: -30°C to 65°C [-22°F to 149°F]

Humidity (operating and storage): 0 %RH to 95 %RH non-condensing

Laser Class: Laser Class 1: IEC/EN 60825-1: 650 nm

4. GPS (Global Positioning System) – NEO-6MV2:

The on-board NEO-6MV2 is a GPS (Global Positioning System) module and is used for navigation. The module simply checks its location on earth and provides output data which is longitude and latitude of its position. It is from a family of stand-alone GPS receivers featuring the high performance u-blox 6 positioning engine. The compact architecture, power and memory options make NEO-6 modules excellent navigation performance even in the most challenging environments.

Specification:

Module: u-blox6 NEO-6MV2 GPS Modules

Receiver Type: 50 Channels，GPS L1 frequency, C/A Code

Time-To-First-Fix: Cold Start (Autonomous)：32 s; Warm Start (Autonomous): 32s

Sensitivity: Tracking & Navigation: -160 dBm; Reacquisition: -160 dBm

Horizontal Position Accuracy: Autonomous: 2.5 m; SBAS: 2.0 m

Velocity Accuracy: 0.1 m/s

Heading Accuracy: 0.5 degrees

Operational Limits: Dynamics: ≤ 4 g; Altitude: 50,000 m; Velocity: 500 m/s

1. Air Quality – CCS811:
